Log Evolve – The Ultimate Type Log Digitizing Software, Guaranteed!

Log Evolve is the simplest way to digitize type logs, graphs, and charts from images into Microsoft Excel. Ideal for geology and beyond, Log Evolve transforms scans or images into editable data. Export your data in Excel, CSV, or compressed ZIP formats.

Key Features

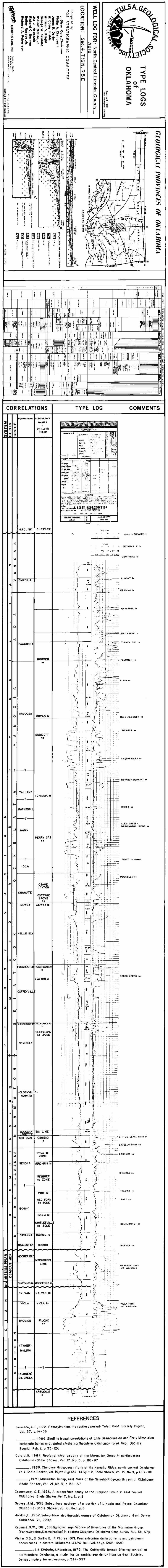

Log Evolve is a graph digitizer, originally created to aid in the digitizing of very large charts (known as logs) in the geology field. With Log Evolve you can take still images like scans or downloaded image files of graphs and convert them directly into tangible data. You can export all of this data in three options, Excel Format (with images and custom export information), CSV Data Table Format or Compressed Zip Format. Log Evolve is backwards compatible with 32bit Windows XP machines that have the .Net Framework 4 update.

Log Evolve can digitize many formats of small, large, horizontal or vertical graphs and charts. Its built-in AI Unit can automatically adjust the values of the viewable image when the graph is moved. With this AI users can graph a portion of the image, move the digitizer to another section, and continue the digitization without compromising data.

Log Evolve Can Digitize

• Bubble Charts
• Line Charts
• Scatter Plots
• Bar Graphs
• Column Graphs
• Spline Images
• Step Line Graphs
• Logarithmic Scale Logs
• And more!

With Log Evolve You Can Customize

• Data Point Colors
• Line Options
• Tops Names and Colors
• Customizable export fields
  • Names, Emails And more!

Features

• NEW – Step value data (0.5 to 2.0 intervals)
  • Perfect for Type Log integration
• NEW – Data point rounding
• NEW – Mouse Depth Tool
• AI Point Detection System
• Tablet and Touch Screen Functionality
• Load TIF, JPG, PNG, BMP and others
• CSV, ZIP and Excel export
• Saved Image Exports
• Photo Editing Capabilities
• Low Resource Pull
• And more!

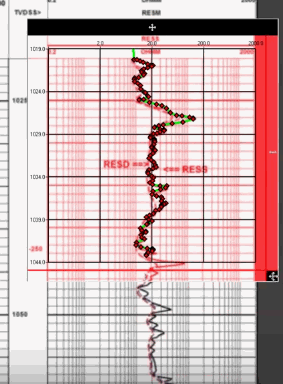

Creating the tangible data is very easy and simple. Within only a couple clicks you can open an image, draw a graph and start digitizing. And with the aid of the AI called ‘Chart Synchronization’ you can easily convert a multi thousand foot log in a matter of minutes.

Unlike most graph digitizing software, Log Evolve incorporates a slight color overlay of your digitizing section. This makes it easier for the user to see data points without getting underlying lines confused. Version 2 has improved on this feature and includes multiple color choices; Red, Blue, Green, Purple and Transparent

Also unlike other digitizers, Log Evolve has the ability to digitize Logarithmic scaled graphs. These graphs can be vertical or horizontal with logarithmic calculations on either the X or Y axis. Please note that when combining the AI with a logarithm graph you will need to lock the axis in which the logarithm is using to prevent exponential data growth.

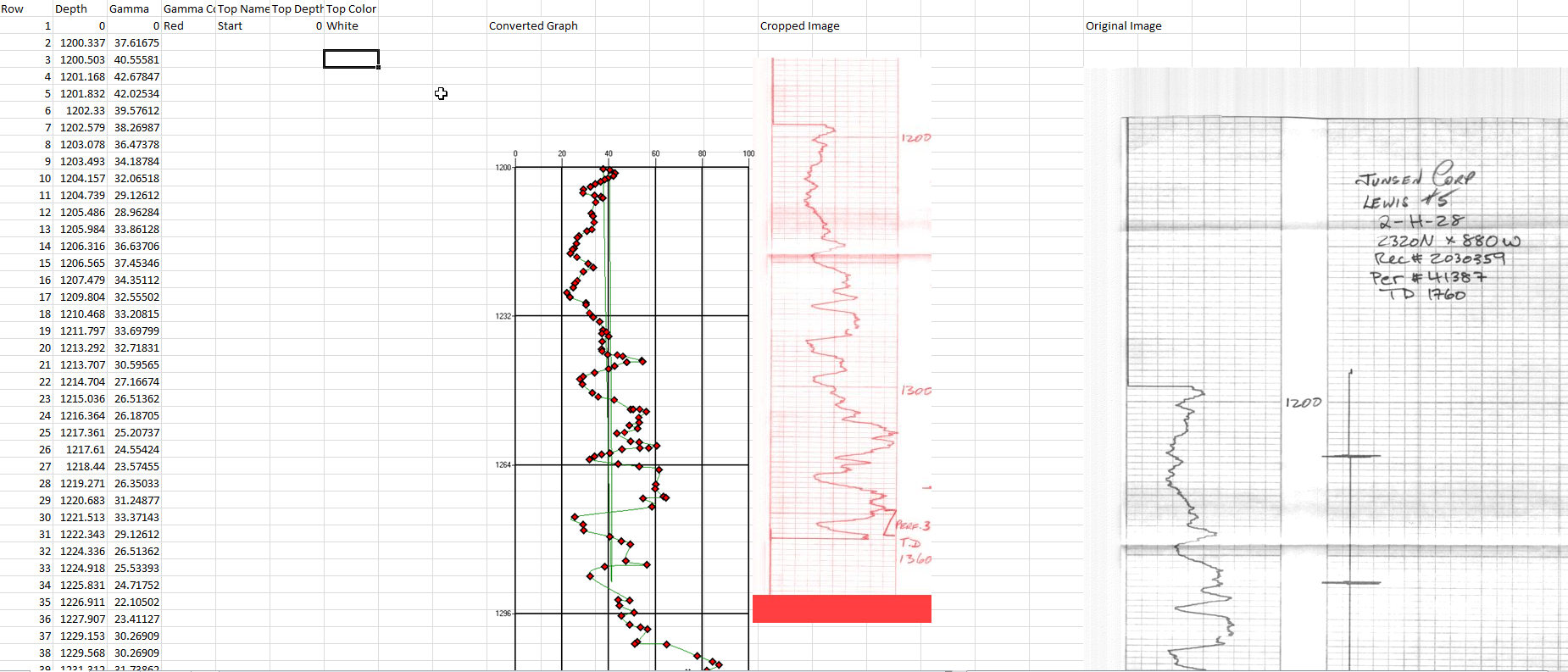

Digitized information can be exported in ZIP format for reading on other computers with Log Evolve, exported to a CSV comma delimited table, or exported directly into Microsoft Excel. With the capability to export directly into Excel, Log Evolve can easily convert data points into editable cell blocks, image files, and embed all of those into the standard .XLSX file that everyone uses. This means that with your export anyone with Microsoft Office Excel version 2007 and above can read and write to it.

Log Evolve has been tested to run on Microsoft Office Excel 2007 and up!

Log Evolve also has the possibility to save your current progress in to a Zip file and pick it right back up where you left off. The Zip file is not proprietary or locked so all the information inside is completely open and can be read from many different devices.

With version 2 came many new features requested by our uses. One was the inclusion of a step system, that will allow the user to specify the depth intervals of each point either vertically or horizontally. These steps can be either 0.5, 1.0, 1.5, 2.0 or 2.5. This makes type logs digitized with Log Evolve compatible with most major geological equipment and software.

Download the User Manual Here (v1.2.2)

For an example of the file exports download

Sample Export Excel or the Sample Project File

Want to know more about Log Evolve?

Check out this blog post

and learn how to begin digitizing with Log Evolve in just seconds!

Log Evolve Download Options

License numbers are emailed only after purchase and are contained inside the email purchase receipt.

If you do not receive an email like this, directly following your purchase, please email our support at support@graytechnical.com .

License numbers are activated inside Log Evolve by going to Help and Activation.

Need more than 5 installs of Log Evolve?

We offer a Corporate License just for that!

Send us an email ( support@graytechnical.com ) from your business account and let us know how many seats of Log Evolve you will need! We always try to respond within 24 business hours of email receipts!

Below are some promotional YouTube video on Log Evolve
